El-O-Matic EL

---

BETTIS electric actuators are specifically designed for quarter- turn (90° rotation) applications on ball, butterfly and plug valves along with dampers, vents or similar uses. Four basic models provide torques from 11 Nm to 2,260 Nm (100 in-lbs to 20,000 in-lbs). Standard on/off units are available along with electronic proportional positioning models and units with full spring-return capability for fail-safe operation.

• Compact design in weatherproof or explosion proof housings.
• High strength gearing run in needle bearings for smooth energy transfer and long service life.
• Permanent lubrication reduces the need for scheduled maintenance.
• Modular design readily accommodates controls and accessories such as heaters, motor brakes, positioners, transmitters and control stations.

El-O-Matic EL series electric actuators are reliable, quality products, which perform faultlessly no matter how demanding the circumstances The EL range of actuators comprises the smaller ELS, the mid range EL and larger ELD series.

• Output torques from 18 Nm to 2,500 Nm (160 in-lbs to 22,126 in-lbs).
• Hazardous and non-hazardous housings, including ATEX or FM certified enclosures.
• Low-noise, smooth running with the use of high ratio worm and wheel reduction.
• Compact construction and lightweight due to the use of high-grade aluminum alloys.
• Standard Operating Temperature: -20°C to +80°C (-4°F to +176°F) Optional high and low temperature trims available.

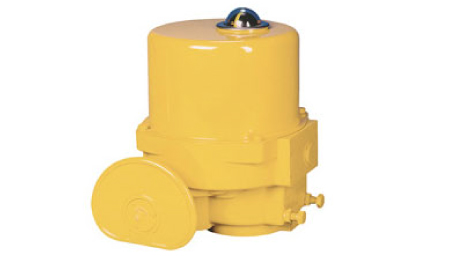

EIM electric actuators

---

EIM electric actuators EIM Series 2000 and TEC2000TM electric actuators have been setting industry standards for ruggedness and reliability for over 60 years in installations around the world. Incorporates heat treated alloy steel worms – aluminum bronze self- locking worm gears.

• Multi-turn models torque ratings up to 27,116 Nm (20,000 ft.-lbs.), thrust up to 4,448 kN (1,000,000 lbs.), and output speeds from 3 to 240 RPM.
• Quarter-turn models torque ratings up to 370,000 Nm (272,890 ft.-lbs.) with operating times from 5 to 900 seconds.
• Standard housing construction for hazardous locations – SIRA/ATEX or FM and CSA.
• Modular construction – Over 60% of mechanical parts are common. Controls modules are same for multi-turn and quarter-turn actuators.
• Standard handwheel with reduction gearing.
• Discrete, analog and ControlincTM digital control – Profibus, FOUNDATIONTM fieldbus, DeviceNet and Modbus RTU.
• Standard Operating Temperature: -20°C to +60°C (-4°F to +140°F)

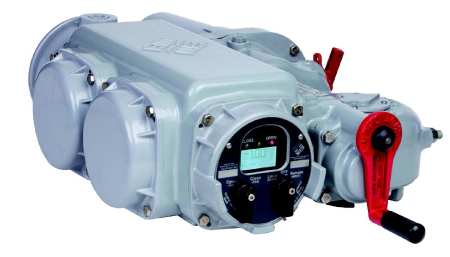

EIM TEC2000 electric actuators

---

EIM TEC2000 electric actuators
• Microprocessor-based Total Electronic Control – Absolute position detector uses Hall-Effect devices – no batteries needed to maintain limit settings.
• Local control elements do not penetrate enclosures – Hall-Effect devices.
• Largest, easiest-to-read LCD in the industry.
• Full function remote display module can be mounted up to 1,200 m (4,000 ft.)
• Separate terminal chamber for field wiring – user-replaceable fuses accessible without opening controls compartment.
