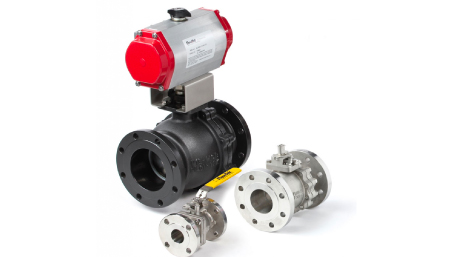

FlowTek Series F15/F30 & RF15/RF30




Ports: Full/Standard Port
Body Style: F15/F30 2 Piece, RF15/RF30 1 Piece
Size Range: 1/2” – 12” (12mm - 300mm)
Temperature Range: -50ºF to 650ºF( -46ºC to 343ºC)
Pressure Rating: ASME Class 150, 300 (PN10 to PN40)
End Connections: ASME Class 150, 300 (PN10 to PN40 Double Flanged)
Body Materials: Stainless Steel, Carbon Steel, Alloys
Seat Materials: Standard: TFM 1600
Optional: Tek-Fil®, PEEK, UHMWPE, RPTFE, Metal, Cavity Fillers
Applications: Process, Tank Farms, Fueling, Oil & Gas

FlowTek Triad Series



Ports: Full/Standard Port
Body Style: 3 Piece
Size Range: 1/4” – 4” (8mm - 100mm)
Temperature Range: -50ºF to 550ºF( -46ºC to 287ºC)
Pressure Rating: 2200 psi CWP (151 Bar) Triad HP to 5000 psi CWP (344 Bar)
End Connections: Threaded, Socket Weld, Butt Weld, Flanged, Extended Socket Weld or Butt Weld
Body Materials: Stainless Steel, Carbon Steel, Alloys Seat Materials: Standard: TFM 1600
Optional: Tek-Fil®, PEEK, UHMWPE, RPTFE, Metal, Cavity Fillers
Applications: Process, Steam, Fire Safe, Industrial Gases, Severe Service

Control Valves: FlowTek Series 19 - Segmented Ball Valve



Series 19 is a versatile Segmented Ball Valve designed for various industries such as pulp & paper, chemical, power, oil & gas and mining. The valve features a characterized ball segment for high range ability with Splined stem connection for precise control, Maintenance friendly Segment-stem assembly, Low friction shaft and thrust bearings for longer life, Integral actuator mounting pads and Interchangeable seats. Sizes: 1” up to 12”

Class Rating: Class 150, 300 & 600
Inherent Flow characteristic: Equal percentage
Temperature range: 40ºC to +260ºC
Metal Seat: Class IV per IEC 60543-4 / ANSI / FCI 70-2
Soft Seat: Class VI per IEC 60534-4 / ANSI / FCI 70-2

Control Valves: FlowTek V-Control Ball Valves




Ports: V-Port(Standard 15°,30°,60°&90°,Custom and Slotted Ports)Full/Standard Port
Body Style: Flanged & 3 Piece Valves
Size Range: 1/4”-12” (8mm - 300mm)
Temperature Range: -50ºF to 550ºF( -46ºC to 287ºC)
Pressure Rating: ASME Class 150, 300 (PN10 to PN40) & 2200 psi CWP (151 Bar)
End Connections: RF Flanged, Threaded, Socket Weld, Butt Weld Extended Socket Weld or Butt Weld
Body Materials: Stainless Steel, Carbon Steel, Alloys
Seat Materials: Standard: Tek-Fil®
Optional: TFM 1600, UHMWPE, PEEK, Metal
Applications: Ideal control element in process piping systems

Control Valves: FlowTek Severe Service



Flow-Tek’s High Performance Severe Service Metal Seated Ball Valves are suitable for the harshest applications. These products are customized as required for specific applications.

Valve Design: ASME B16.34, ASME Section VIII - Div 1, Appendix 2
Sizes: 0.5 - 36 in. (DN 15 - 900) (Custom and larger sizes available upon request)
Pressure Ratings: ASME 150 - 4500 (Custom higher pressures upon request.)
Temperature: Standard design rated up to 1100 °F (593 °C) (Can be customized for higher temperatures)
End Connections: Raised Face and Ring-Joint (ASME B16.5 and DIN 2501) Buttwelds (ASME B16.25) Hubs, Socketweld (ASME B16.11) (Custom Ends available)
End-To-End: ASME B16.10 (Long Pattern)
Testing: MSS SP-61, API 598, ANSI/FCI, Class VI (Custom Tests available)
